README.md

About/Requirements

A simple demonstration showing how to use a midi controller with this API. Specifically, this script binds the sliders of a Korg NanoKontrol2 to the 8 input strips of gainlayer 0.

In order to run this example script you will need to have setup Voicemeeter with a midi device in Menu->Midi Mapping.

This script was written for and tested with a Korg NanoKontrol2 configured in CC mode. The slider CC numbers were increased by 1, as shown:

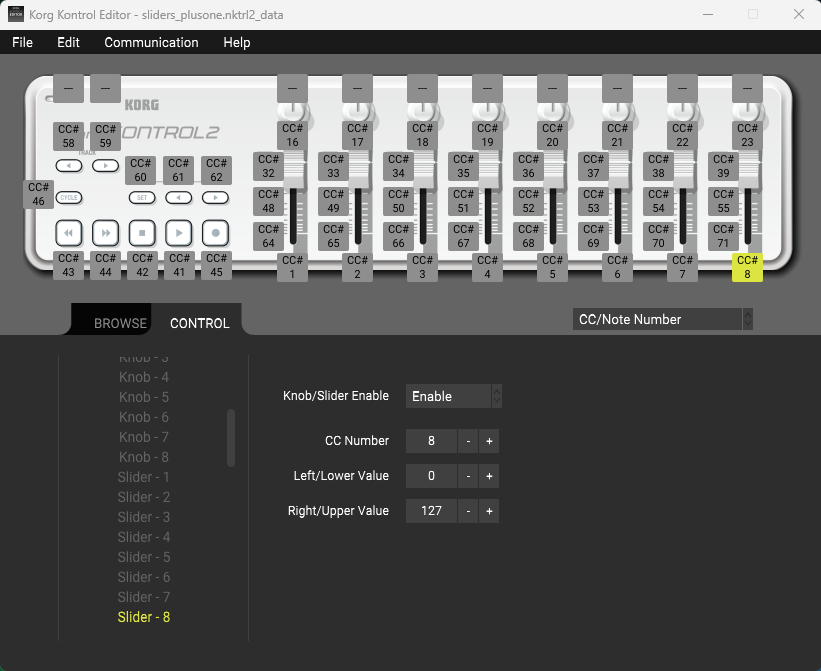

Image of Korg NanoKontrol2 Software

Use

First ensure Voicemeeter Potato version is launched. Then Press SEL for bus0 (A1).

Move the NanoKontrol2 sliders and watch the strip sliders move.

Resources

If you want to know how to setup the NanoKontrol2 for CC mode check the following resources.
